Transposition Encryption


Transposition Encryption or Geometrical Pattern Encoding Encryption Decryption technique written in Visual Basic .NET.
Click here to Download the source code.

Introduction

In transposition and geometrical pattern encoding the text is rearranged with the aid of some type of geometric figure, a typical example being a two - dimensional array or a matrix, First plain text message is written into the figure according to a particular matrix, the cipher text then created by taking the letters off the matrix according to a different path.

1. Encryption / Decryption



2. XOR Encryption

3. Transposition Encryption
4. Symmetric Encryption
5. Asymmetric Encryption
6. Certificate Authority

7. Decryption Logics

8. Sample Coding


Next : PK Encrypter

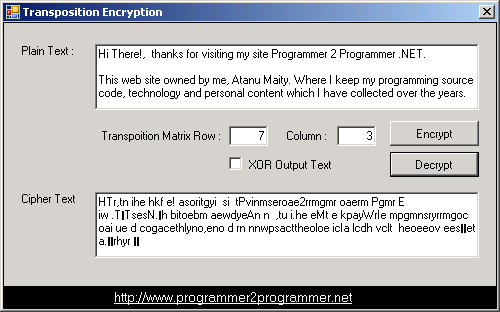

Screen shot



Logics

First we set our matrix, it is a multidirectional array, user can set the array dimension, the pattern of cipher text depends on matrix dimension. After creating the array we put plain text character by character into the array pocket, when the array is filled we moved the text from the array to the temporary string variable, then reset the array and continue until the plain text is completely covered.


            For j = i To LastPos
                '>>> check if need to XOR the character
                If ChkXOR.Checked = True Then
                    Dim TempChar As String
                    TempChar = Mid(StrDataIn, j, 1)
                    DataArray(r, c) = Chr(Asc(TempChar) Xor XORCode)
                Else
                    DataArray(r, c) = Mid(StrDataIn, j, 1)
                End If
                c = c + 1
                '>>> reset the array indexer
                If r > IndR - 1 Then
                    r = 0
                    c = 0
                End If
                If c > IndC - 1 Then
                    c = 0
                    r = r + 1
                End If
            Next

After that we transpose the array by row and column, here you can improve if you want, you can create another array to order the transposition. After transposition loop the array and concatenate all the array element into and string variable and return it as a cipher text. If you check the XOR option it will XOR the output cipher text. In case of decryption you need to transpose the array in reverse order to get the plain text. Lastly remove the filler character from the final output, we use chr(1).

        Dim StrTemp As String
        StrTemp = ""
        Dim p, p1 As Integer
        p = 1
        p1 = 1
        For r = 0 To IndR - 1
            For c = 0 To IndC - 1
                StrTemp = StrTemp & DataArray(r, c)
            Next
        Next
        While p <= StrTemp.Length
            '>>> replace array filling character
            '>>> check if it is xor
            If ChkXOR.Checked = True Then
                StrOut = StrOut & Replace(Mid(StrTemp, p1, 1), _
                Chr(Asc(Chr(1)) Xor XORCode), "")
            Else
                StrOut = StrOut & Replace(Mid(StrTemp, p1, 1), Chr(1), "")
            End If
            p = p + 1
            '>>> increment position by row
            p1 = p1 + IndR
            If p1 > StrTemp.Length Then
                p1 = p1 - StrTemp.Length + 1
            End If
        End While

If you combine Transposition Encryption with XOR Encryption it will produce near to impossible cipher text. May be for professional hacker, cracker it is not very hard to break, however for normal security need and easy to implement it is quite used today.

Download the source code and project files



It is free to download, source code are well commented, complete visual basic .net source code can be download from the download link. I did not claim any copyright for this Transposition Encryption program and source code. You can freely download this Transposition Encryption program and use all or part of this program as you want. This is tested and live project visual basic source code however, my advice to you that you should take a backup of your original text and data file before use this Transposition Encryption program.



  Language: Visual Basic .NET   Platform: Win 2000, Win XP
  Category: Security Programming   Cost: $0.0
  Copyright: NO   Source Code: YES
  Size: 95 KB   Download: 746 Times
  No of Files: 15
